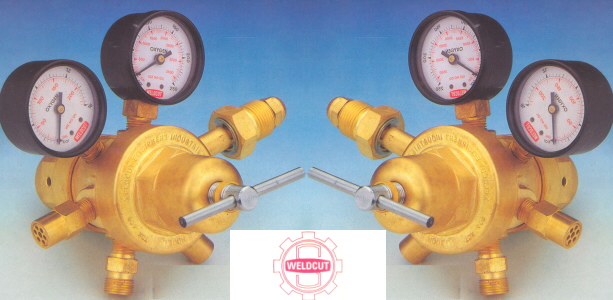

Gas Regulators and FBA


     Weldcut

Technical Data
  • Inlet pressure - 200 Bar Maximum.
  • Delivery pressure - Adjustable 1 to 150 Bar.
  • Fluid Media - Non Corrosive Gases.
  • Temperature range - - w40 0 to + 70 0
  • Body ports - 1/4" / 1/2" NPT Female.
  • Pressure gauges - 50 MM / 65 MM Diameter.
  • Wetted area parts - Ultrasonically cleaned corrosion resistance.




Gas Service
  • Acetylene.
  • C..G.
  • Hydroge.
  • L.P.G.
  • Carbon Dioxide.
  • Helium.
  • Nitrogen.
  • Oxygen.



Application
  • Brazing.
  • Cutting.
  • Heating.
  • Welding.
  • Beverages.
  • Bubbling Control.
  • Calorimetry
  • Chromatography.
  • Process Control.
  • Purging.
  • Research Lab.
Material of Construction:
  • Body / Bonnet / Forged / Bar - Brass.
  • Poppet - Stainless Steel.
  • Seat / Seal - Nylatron.
  • Diaphragm - Reinforced Fabric , Synthetic Rubber.
  • Presure Adj. Screw. - Stainless Steel.
Correction Factor for Gases tother than AIR
  • Acetylent = 1.050. - AIR = 1.000
  • Argon = 0.852. - C. N. G. = 1.340.
  • Carbon Dioxide = 0.810. - Helium = 2.690.
  • Hydrogen = 3.790. - Nitrogen = 1.015.
  • Oxygen = 0.951. - Propane = 0.810
