Tig - Mig Welding Machines


Ajit C02 / Mig welding equipment is used universaly in light and heavy fabrication workshop, wagon-building and automobile industries for high quality welding. AXR model gives a excellent spatter free welding without any difficulty. Thyristorised wire feed control system results in smooth wire feeding. These machines are ideal for defect-free welding in sheet and gap filling applications.


Salient Features:
  • AXR Model is useful for better welding, large gaps filling and continuous welding applications.
  • Control PCB and SOLENOID VALVE are fitted in wire feeder unit.
  • BURN-BACK control system assures efficient use of the equipment either with co2 or Argon rich gas mixture as shielding gas.
  • 2-Roll Change-overy type wire feed arrangement.
  • Permanent control magnet DC Motor gives better speed control for wire feeder.
Technical Specification

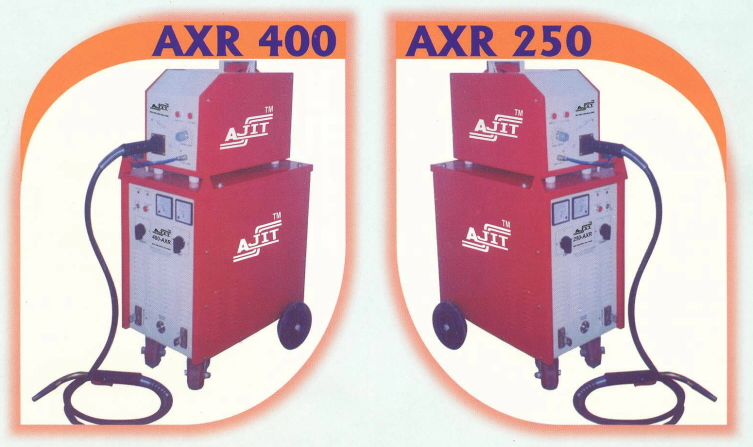

Power Source AXR 250 / 400
Input
Supply Voltage 415 volts AC
Frequency 50 Hz.
Phase 3
Input Current (Max.) 14 Amps / 30 Amps
Max. KVA Rating @ 60 % duty cycles 9.5 KVA / 21.0 KVA
Output
Open Circuit Voltage 16-36 V / 18-55 V
Max. Welding Current @ 60 % duty cycles 250 Amps / 400 Amps.
Max Welding Current @ 100% duty cycles 195 Amps / 310 Amps.
Insulation "F" Class
Cooling Forced air cooled
Dimensions ( L x W x H 750 x 390 x 640
  790 x 450 x 640
Weight (Apjprox.) 120 Kgs. / 190 Kgs.
Wire Feeder AXR - 250 / 400
Driving System 2 Roll Quick Release
Wire drive motor type DC Permanent Magent
Wire Feed Speed 1.2 to 18 m / min.
Dimensions (L x W x H) 580 x 260 x 450
Torch MB - 25 - AK / MB - 36 - KD
Current Capacity @ 60 % duty cycles 250 Amps / 400 Amps.
Cables hose length 3 Mtrs.
Cooling Type Gas
Suitable for wire size (mm) 0.8 - 1.2 / 0.8 - 1.6
